ZLPG SERIES ATOMLZING DRIER FOR IMMERSED OINTMENT OF TRADITIONAL CHINESE MEDICINE
It has more than 80 sets of processing devices and its annual production capacity can be more than 500 sets with over 30 categories.
Keywords: drying equipment | vacuum drying | oven
- General Descriptions

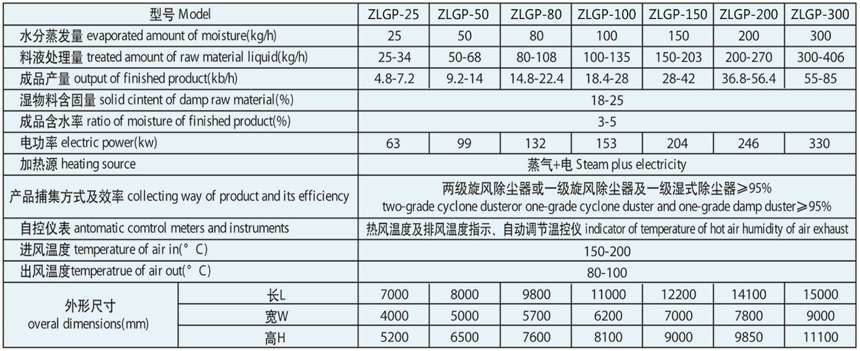

- Technical parameters
- Sketch map for inseallation
- Commodity name: ZLPG SERIES ATOMLZING DRIER FOR IMMERSED OINTMENT OF TRADITIONAL CHINESE MEDICINE
- Commodity ID: 1046717174799753216
1, the use of three air purification, so that the wind reached 100,000 requirements;
2, the use of a cold wall device, so that the wall temperature reached 80 0C, the material is not coking on the wall;
3, the entire volume is the original PLC standard centrifugal spray 3. 5 times.
4, the use of quick open washing device, suitable for multi-species production requirements
5, dust removal using wet dust, so that dust does not go out, in line with environmental requirements;
6, the use of air cleaning device, the effect is more satisfactory;
7, atomizer with frequency control.
8, using the PLG control, program control system screen display;
9, can be equipped with flushing device;
10, can be equipped with dry air sealed transport.
Chinese medicine extract High-speed centrifugal spray device is centrifugal spray drying technology in the application of specific materials drying, but also the use of high-speed centrifugal atomizer to disperse the material into the mist, with hot air in full contact to complete the instant dry to form a powder Finished product drying device.
Chinese medicine extract special dryer is designed to solve the traditional Chinese medicine extract and plant extract liquid spray dryer, it solves the material in the original LPG high speed spray dryer in traditional Chinese medicine
The following conditions occur during the drying of the extract:
1, the material sticky wall, the yield is low;
2, the material in the wall to stay a long time, resulting in coking material deterioration phenomenon
3, difficult to clean, do not meet GMP requirements;
4, low output: LPG-150 spray dryer, the output can only handle 50-60Kg / h liquid material.
