RS HOT WATER HEATING SYSTEM
Number of views:
1000

RS HOT WATER HEATING SYSTEM

Retail price
0.0
Market price
0.0
Number of views:
1000
Product serial number
Quantity
-
+
Stock:
1
General Descriptions
Application

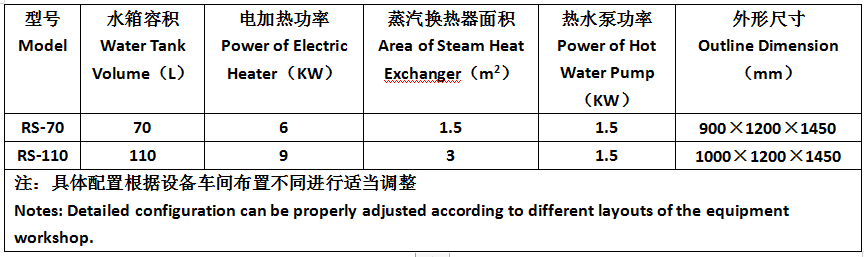

Technical parameters
Sketch map for inseallation
Scan the QR code to read on your phone
We could not find any corresponding parameters, please add them to the properties table

※Control in the process, energy consumption reduced, occupied area of the equipment reduced.

※PID control precision ±1.5℃; temperature control precision ±1℃ of PLC program.

※Over temperature protection designed for the system.

※Multi-stage hot water heating and temp. keeping system. Especially suitable for heat sensitive materials which have the hidden danger such as materials dissolution, going bad, agglomeration, and composition variation during the drying due to quick heating up.

※It can match with vacuum dryer and reaction still for heating.

※Heating method: steam heating and electric heating.

Applications:

This system is applicable to the heat source part which needs accurate temperature control during the drying in pharmaceutical, chemical and foodstuff industries.



Working Principle:

Automatic water supplement is realized by the floating ball liquid level control of the water tank, and then the water is circulated for the equipment through the hot water pump. The flowrate of the steam or electrical heating is controlled by instrument PID or PLC to make the heat exchange. In this way, the water tank temperature reaches the temperature required by process. During that period, there are multi-stage temperature control points, over temp. alarm, low water level alarm, water return protection and automatic cooling protection designed to guarantee the accuracy of the temperature .
